Now we have introduced in our LAB the rivet technology for dual side PCB. Thanks to BUNGARD for the information

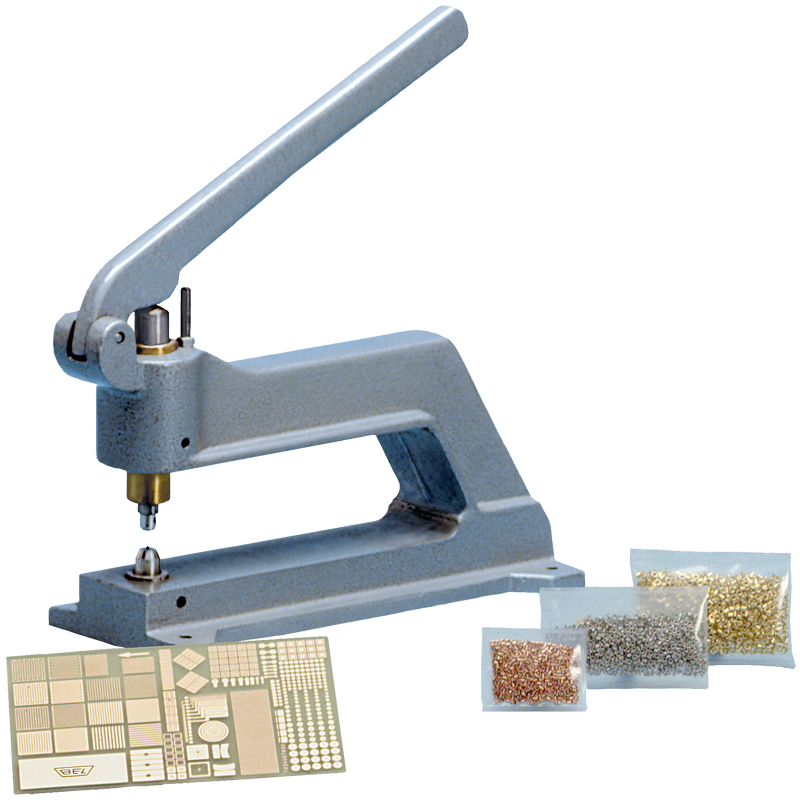

Hand-operated machine, especially for mechanical through-hole-plating purposes. Professional through-hole-platings by individual tools for each rivet diameter. Optimal contacts, even without soldering. Favorit offers high quality results at a low cost level.
New: to arrange and fix multilayer pcbs before pressing we offer special brass tubular rivets with outer diameter 3.0 mm and a suitable tool for Favorit.
- Adjustable depth limiter
- Maximum board size: 400 mm
Extend of delivery:
- The offered system includes complete press + tools
- Inclusive 1 x 1000 rivets
- Inclusive 1 set of tools
- Please specify the inner-diameter you require
- Various tools and rivets are available.
- Different tools have to be used for different diameters.
|Rivet inner diameter /mm:||0,4||0,6||0,8||1,0||1,2||1,5|
|Required drill diameter /mm:||0,6||0,8||1,0||1,5||1,7||2,0|
- Width x height x depth: approx. 9,5 x 21 x 30 cm
- Working depth: 200 mm
- Weight: approx. 4 kg
tool change and adjustment
Technical alteration reserved.
